• Ensure HS2 Tablet (HS2-T) and the HS2 Dongle(HS2-OTG) is securely mounted or placed to prevent accidental drops.
• Avoid using the HS2 Tablet (HS2-T) and the HS2 Dongle(HS2-OTG) in environments where it may be exposed to water or excessive moisture.

• Monitor the HS2 Tablet (HS2-T) temperature regularly. Exposure to high ambient temperatures may cause the device to overheat.
• If the HS2 Tablet (HS2-T) becomes excessively hot to touch, discontinue use immediately and allow it to cool down before resuming operation.

• Use only the manufacturer’s provided power supply (HS2-EPS) or a WHO M2M accredited power source.
• Avoid overcharging the HS2 Tablet (HS2-T) to prevent battery damage and potential fire hazards.
• Ensure that charging cables are not damaged or frayed and are kept away from heat sources.

• If any part of the device begins to overheat or emits smoke, turn them off immediately and disconnect from any power source.

• In case of battery leakage, avoid contact with the leaked material. If contact occurs, wash the affected area with plenty of water and seek medical attention.

This page displays the following:

1. A drop down menu where the asset can be changed
2. The current status of the fridge and if any alarms are active
3. Logger errors
4. The fridge metrics e.g Vaccine Compartment temperature
5. A diagram showing fridge temperatures/alarms

This page displays the following:

1. A drop down menu where the time period and asset can be changed
2. Summaries for status of the fridge over a time period. E.g. Average HEAT alarm duration, total HEAT alarms etc.

This page displays the following:

1. A drop down menu where the time period and asset can be changed
2. A donut chart and a stacked line chart showing showing trends in alarms over the selected time period
3. The alarm code
4. The start time of the alarm (This may not be available if it is not within the selected time range)
5. The end time of the alarm (This may not be available if it is not within the selected time range)
6. Whether an alarm was acknowledged and the time it was acknowledged
7. Duration of the alarm
8. The alarm status (Active/Terminated)
9. Details about the fridge during the alarm

This page displays the following:

1. A drop down menu where the time period and asset can be changed
2. A chart showing trends in the average/maximum/minimum temperature of the asset
3. The date of the summary
4. The maximum temperature for the day
5. The minimum temperate for the day
6. The average temperate for the day

This page displays the following:

1. A drop down menu where the asset can be changed
2. Edit and view tabs which can be switched between
3. A search bar
4. The parameter code
5. The parameter title
6. The parameter description
7. The current value of the parameter
8. A button to edit the current value

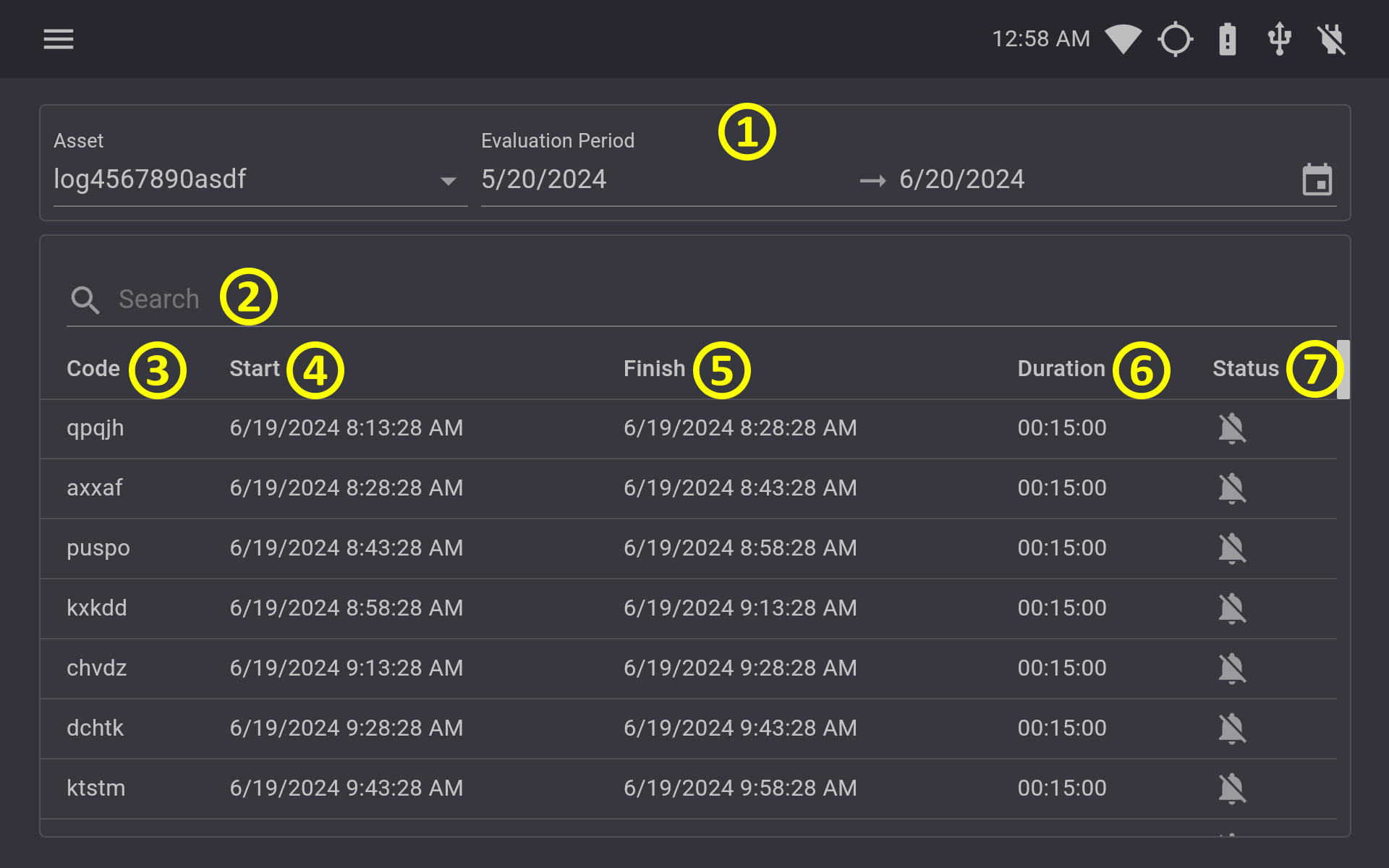

This page displays the following:

1. A drop down menu where the time period and asset can be changed
2. A search bar
3. The error code
4. The start time of the error (This may not be available if it is not within the selected time range)
5. The end time of the error (This may not be available if it is not within the selected time range)
6. Duration of the error
7. The error status (Active/Terminated)

This page displays the following:

1. A drop-down menu which allows you to change the EMD language (N.B An app restart is required to apply the effects of the change)

Ensure power cable (HS2-BFMJ) and USB connection (HS2-CTC) are secure and undamaged. Please ensure the cables are not placed under strain to avoid unintentional damage.

Verify the surrounding temperature and humidity are within safe limits.

Clean the screen with a microfiber cloth to remove dust and smudges.

Check the HS2 Tablet (HS2-T) and the HS2 Dongle (HS2-OTG) for physical damage, particularly around the mounting points.

Ensure the HS2 Tablet (HS2-T) and the HS2 Dongle (HS2-OTG) is securely mounted and not at risk of falling.

Organize and secure any cables to prevent wear and accidental disconnection.

Check charging and other ports for dust and damage.
