MPXzero
1. Install Carel Applica
Download and install the Carel Applica
2. Connect To Your Controller
- Open the app and connect to your Carel controller using Bluetooth or NFC (depending on model).
- You may need to select the account/profile Service
- When prompted for a password input 22

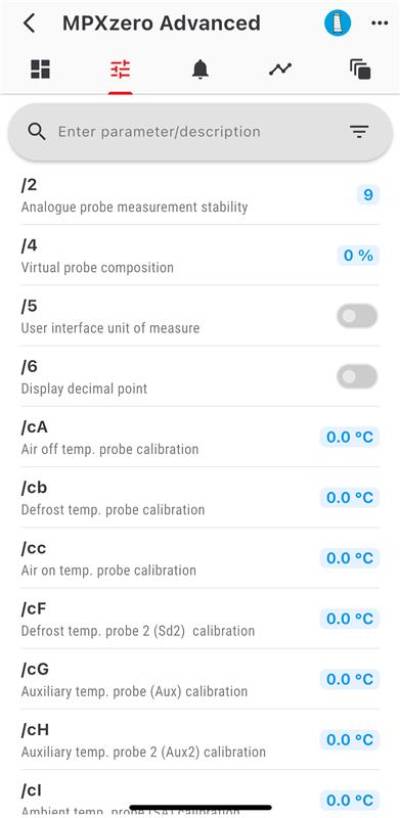

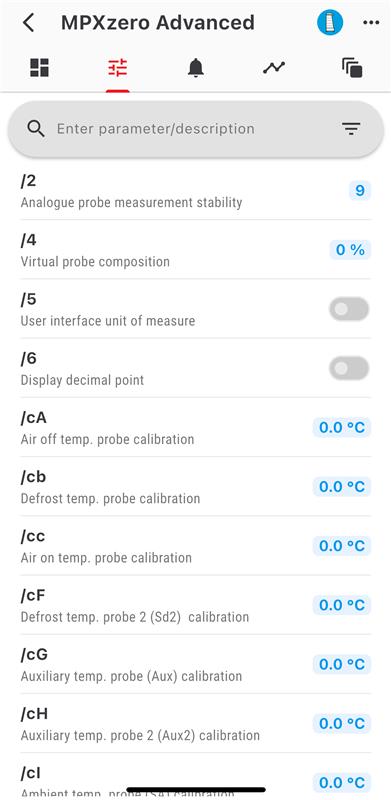

3. Access the Parameters
- Open the main menu.
- Navigate to the Parameters section.
4. Selecting Communication Settings
On the search bar tap the filter icon and then select Communication
5. Set Communication Parameters

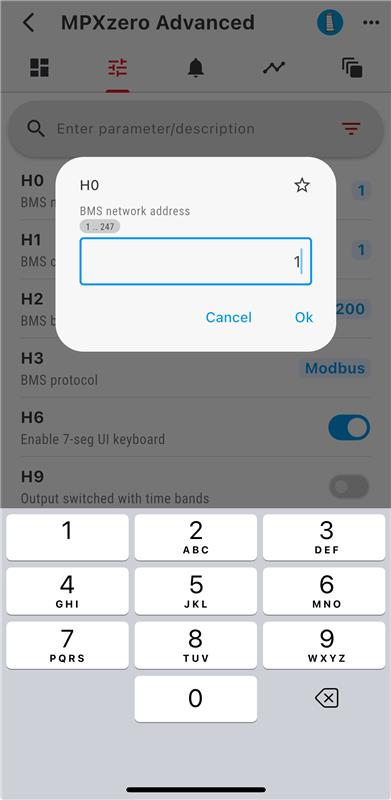

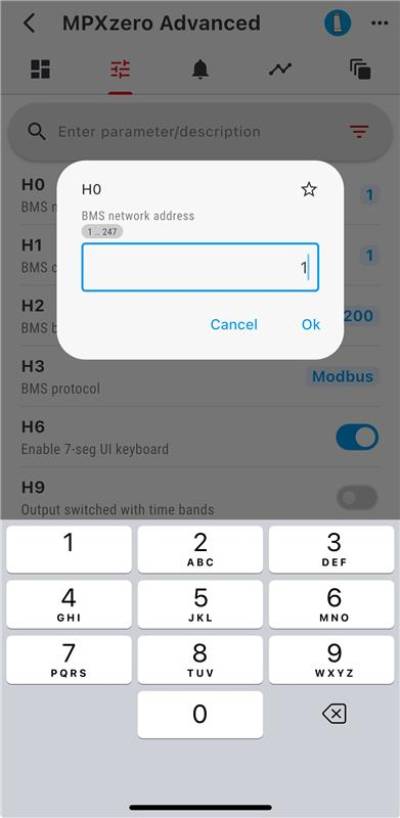

- H0 Serial Address: 1

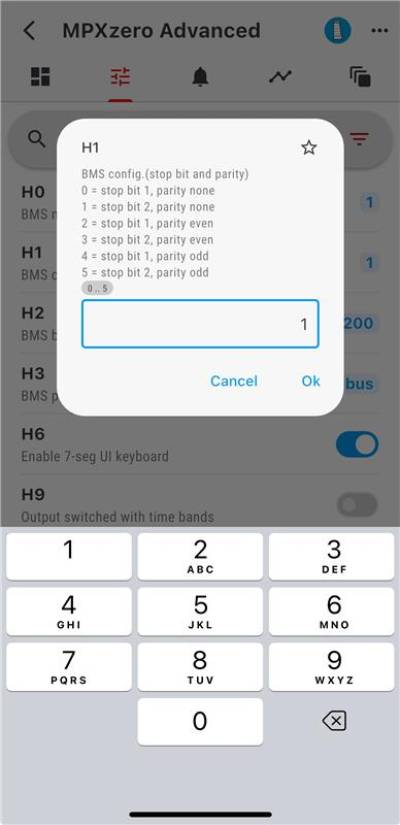

- H1 BMS config.(stop bit and parity): stop bit 2,parity none

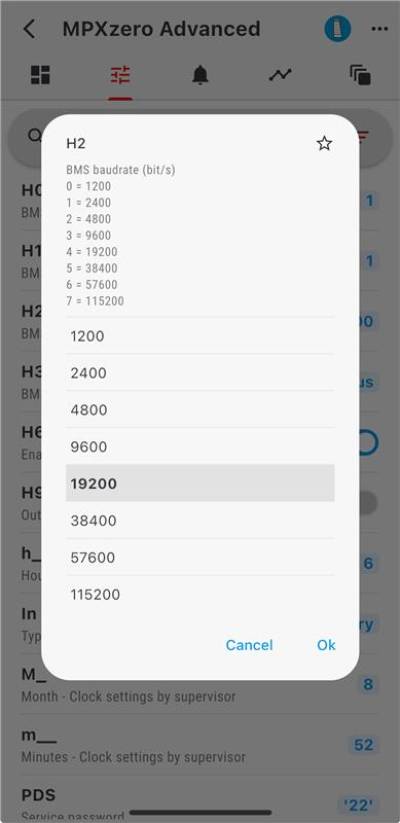

- H2 BMS baudrate (bit/s): 19200

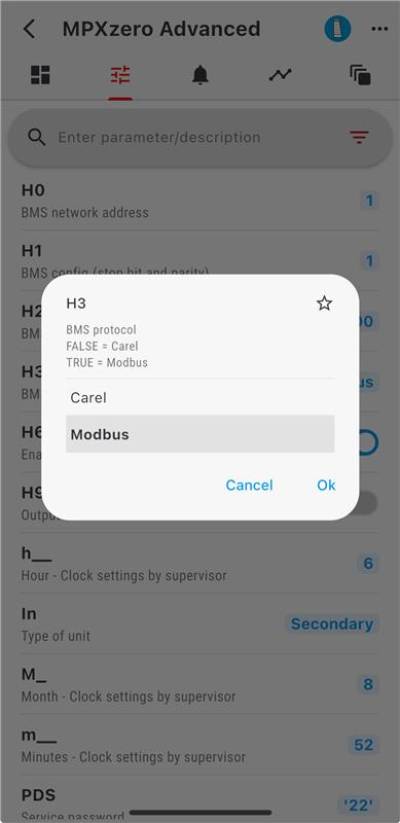

- H3 BMS Protocol: Modbus
